Cree XLamp® CXB3070 LED



规格书下载:








Cree XLamp® CXB3070 LED

Cree XLamp® CXB3070 LED 拓展了这个 系列的高‑流明、多‑裸片集成式阵列,在易于使用的平台中提供高性能。 该 LED 具有 XLamp LED 照明‑级可靠性,其均匀发光表面能够实现定向和非‑定向照明应用。 CXB3070 LED 具有 2 步、3 步和 5 步颜色一致性。 CXB3070 采用 23‑mm 光源,使这个尺寸具有新级别的通量和效率。

FEATURES

  • 23mm optical source
  • Mechanical and optical design consistent with other CXA30 and CXB30 LEDs
  • Available in 70-, 80- and 90-minimum CRI options
  • Cree EasyWhite® 2-, 3- and 5-step binning
  • Forward voltage option: 36‑V class
  • 85°C binning and characterization
  • Extremely uniform color over viewing angle
  • Top-side solder connections
  • Thermocouple attach point
  • NEMA SSL-3 2011 standard flux bins
  • RoHS and REACh compliant
  • UL® recognized component (E349212)

SPECIFICATIONS

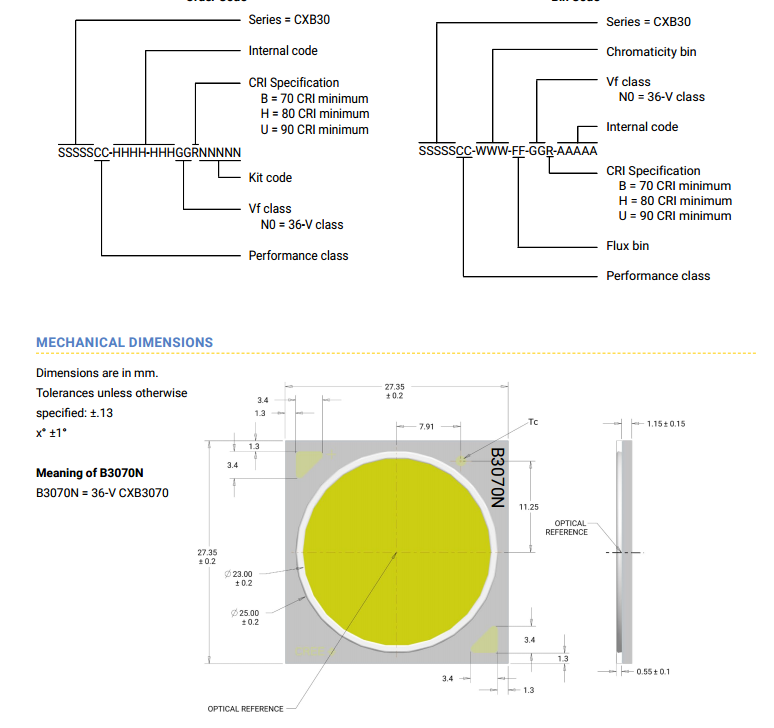

  • Size: 27.35 x 27.35mm
  • Product Options: High-CRI
  • Maximum Drive Current: 2.8A
  • Max Power: 106W
  • Light Output: 9739 - 15200 lm
  • Maximum Efficacy at Binning Conditions: 175 lm/W
  • Light Emitting Surface (LES): 23mm
  • Typical Forward Voltage: 36V @ 1.925A
  • Maximum Reverse Current: 0.1mA
  • Viewing Angle: 115º
  • Binning:
    • 85°C
    • 2- 3- and 5-Step EasyWhite®
  • Maximum ESD Withstand Voltage: 8000V (HBM per Mil-Std-883D)

应用

  • Non-Directional
  • Directional
  • Downlights
  • Roadway & Parking


Cree, Inc.:

CXB3070-0000-000N0HBD65E CXB3070-0000-000N0UZ440G CXB3070-0000-000N0BBD40E CXB3070-0000- 000N0UZ227G CXB3070-0000-000N0UZ457G CXB3070-0000-000N0HAD35H CXB3070-0000-000N0HBD57E CXB3070-0000-000N0BBB40E CXB3070-0000-000N0UAB40G CXB3070-0000-000N0UY430H CXB3070-0000- 000N0BBB57E CXB3070-0000-000N0BBD50E CXB3070-0000-000N0UY427G CXB3070-0000-000N0HBB40H CXB3070-0000-000N0UZ435G CXB3070-0000-000N0HBB40G CXB3070-0000-000N0HBD50G CXB3070-0000- 000N0HAD40G CXB3070-0000-000N0BBD57E CXB3070-0000-000N0UY430G CXB3070-0000-000N0UZ435H CXB3070-0000-000N0UZ227H CXB3070-0000-000N0HBD50E CXB3070-0000-000N0UZ230G CXB3070-0000- 000N0UZ440H CXB3070-0000-000N0BBB50E CXB3070-0000-000N0HBB57E CXB3070-0000-000N0HBB35H CXB3070-0000-000N0HAB30H CXB3070-0000-000N0HZ427H CXB3070-0000-000N0HAD30H CXB3070-0000- 000N0HZ427G CXB3070-0000-000N0UY427H CXB3070-0000-000N0UZ235H CXB3070-0000-000N0HAD35G CXB3070-0000-000N0HBB50E CXB3070-0000-000N0HBB50G CXB3070-0000-000N0HBB35G CXB3070-0000- 000N0HAD40H CXB3070-0000-000N0BBB65E CXB3070-0000-000N0UAB40H CXB3070-0000-000N0BBD65E CXB3070-0000-000N0UAB57G CXB3070-0000-000N0HAB27G CXB3070-0000-000N0UZ230H CXB3070-0000- 000N0UZ450G CXB3070-0000-000N0HBB65E CXB3070-0000-000N0UZ235G CXB3070-0000-000N0HAB27H CXB3070-0000-000N0UAB50G CXB3070-0000-000N0HAB30G CXB3070-0000-000N0HAD30G CXB3070-0000- 000N0BCB65E CXB3070-0000-000N0BCB57E CXB3070-0000-000N0HBB30G CXB3070-0000-000N0BCB50E CXB3070-0000-000N0UZ430H CXB3070-0000-000N0HAD27G CXB3070-0000-000N0UAB35G CXB3070-0000- 000N0UAD40G CXB3070-0000-000N0BCB40E CXB3070-0000-000N0HBD40G CXB3070-0000-000N0HAD27H CXB3070-0000-000N0UAB35H CXB3070-0000-000N0UZ430G CXB3070-0000-000N0HBB30H CXB3070-0000- 000N0HBD40H CXB3070-0000-000N0UAD50G CXB3070-0000-000N0UAD40H
