Cree XLamp® CXB3590 LED

Cree XLamp® CXB 3590 LED 是第 2 代 CXA 系列中最亮的 LED 成员。这些 LED 拓展了这个系列的高‑流明、多‑裸片集成式阵列，在易于使用的平台中提供高性能。该 LED 具有 XLamp LED 照明‑级可靠性，其均匀发光表面能够实现定向和非‑定向照明应用。 CXB3590 LED 具有 2 步、3 步和 5 步颜色一致性。这些 LED 采用 23mm 光源。 CXB3590 使这个尺寸具有新级别的通量和效率。

FEATURES

30mm optical source
Mechanical and optical design consistent with CXA35 LED
Available in 70-, 80- and 90-minimum CRI options
Cree EasyWhite® 2-, 3- and 5-step binning
Forward voltage options: 36V class & 72V class
85°C binning and characterization

Extremely uniform color over viewing angle
Top-side solder connections
Thermocouple attach point
NEMA SSL-3 2011 standard flux bins
RoHS and REACh compliant
UL® recognized component (E349212)

SPECIFICATIONS

Size: 27.35 x 27.35
Product Options: High-CRI
Maximum Drive Current: 2.8A
Max Power: 106W
Light Output: 9739 - 15200 lm
Maximum Efficacy at Binning Conditions: 175 lm/W
Light Emitting Surface (LES): 23mm

Typical Forward Voltage: 36V @ 1.925A
Maximum Reverse Current: 0.1mA
Viewing Angle: 115º
Binning:
- 85°C
- 2- 3- and 5-Step EasyWhite®
Maximum ESD Withstand Voltage: 8000 V (HBM per Mil-Std-883D)

应用

Non-Directional
Directional
Downlights
Roadway & Parking

Cree, Inc.:

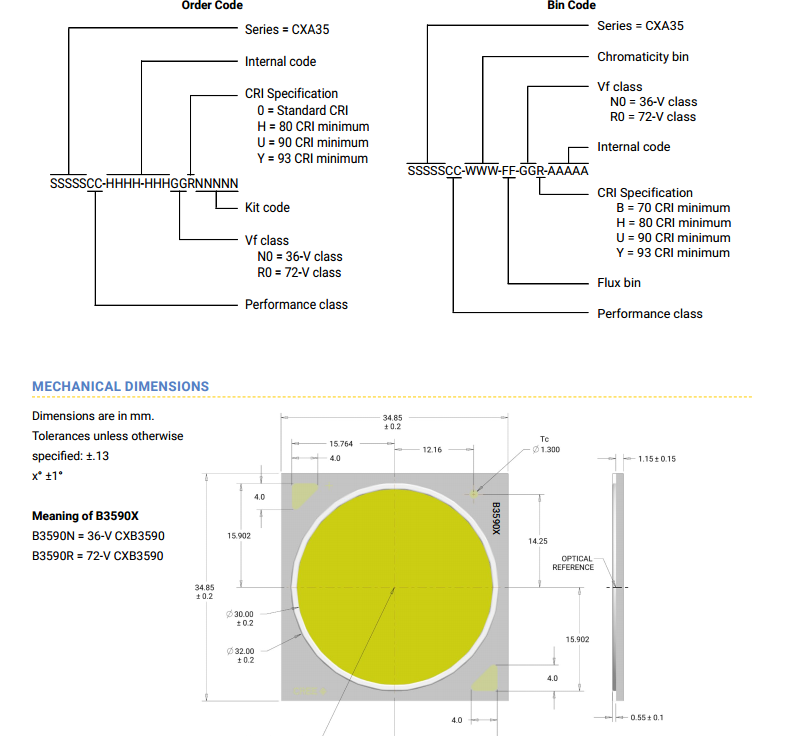

CXB3590-0000-000R0HCB57E CXB3590-0000-000N0UBB27G CXB3590-0000-000N0BDB65E CXB3590-0000- 000N0UBD30G CXB3590-0000-000R0HCB27G CXB3590-0000-000N0UBD30H CXB3590-0000-000R0HCD65E CXB3590-0000-000R0UBD35G CXB3590-0000-000R0UBD35H CXB3590-0000-000R0HCD35G CXB3590-0000- 000R0UBB30H CXB3590-0000-000R0UCB50G CXB3590-0000-000R0UBD30H CXB3590-0000-000N0UCB65G CXB3590-0000-000N0BDB50E CXB3590-0000-000N0HCB65E CXB3590-0000-000N0BDB57E CXB3590-0000- 000R0UCB57G CXB3590-0000-000N0HCB35H CXB3590-0000-000N0HCD50E CXB3590-0000-000R0HCD50E CXB3590-0000-000R0HCB40H CXB3590-0000-000R0BDB65E CXB3590-0000-000N0BCD57E CXB3590-0000- 000R0BDB50E CXB3590-0000-000N0UBB35G CXB3590-0000-000N0HCD57E CXB3590-0000-000R0UBD57G CXB3590-0000-000N0HBD27H CXB3590-0000-000R0HCD57E CXB3590-0000-000N0HCB30H CXB3590-0000- 000R0HCB35H CXB3590-0000-000R0UBB40G CXB3590-0000-000N0BCD65E CXB3590-0000-000R0HCD35H CXB3590-0000-000N0HCB35G CXB3590-0000-000N0HCB27G CXB3590-0000-000N0UBD35H CXB3590-0000- 000R0UBB35H CXB3590-0000-000N0BCD40E CXB3590-0000-000N0UBD40H CXB3590-0000-000R0HCB40G CXB3590-0000-000N0UAD27G CXB3590-0000-000N0HCB57E CXB3590-0000-000N0UBB27H CXB3590-0000- 000N0UBB30G CXB3590-0000-000N0HCB40H CXB3590-0000-000R0UBD40H CXB3590-0000-000R0UAD27H CXB3590-0000-000N0UBD40G CXB3590-0000-000R0UAD27G CXB3590-0000-000R0HCD40G CXB3590-0000- 000R0UBD50G CXB3590-0000-000R0UBD40G CXB3590-0000-000N0HCB40G CXB3590-0000-000N0UBD57G CXB3590-0000-000R0UBB40H CXB3590-0000-000N0UBD65G CXB3590-0000-000N0UBD35G CXB3590-0000- 000N0HCD40G CXB3590-0000-000R0UBD30G CXB3590-0000-000R0HCB65E CXB3590-0000-000N0HCB50E CXB3590-0000-000N0HCD65E CXB3590-0000-000N0HCD35H CXB3590-0000-000N0UCB57G CXB3590-0000- 000N0UBB40G CXB3590-0000-000N0UBB40H CXB3590-0000-000N0UBD50G CXB3590-0000-000R0HCB27H CXB3590-0000-000R0HBD27G CXB3590-0000-000R0HCD40H CXB3590-0000-000R0BDB57E CXB3590-0000- 000N0UBB30H CXB3590-0000-000R0UBB27G CXB3590-0000-000R0UBB30G CXB3590-0000-000R0BCD50E CXB3590-0000-000N0UBB35H CXB3590-0000-000R0UBB35G CXB3590-0000-000R0BDB40E CXB3590-0000- 000R0UBB27H CXB3590-0000-000R0HCB50E CXB3590-0000-000N0UAD27H CXB3590-0000-000R0BCD40E CXB3590-0000-000R0HCB50G CXB3590-0000-000N0BDB40E CXB3590-0000-000N0HCD40H CXB3590-0000- 000R0UBD65G CXB3590-0000-000R0HBD27H CXB3590-0000-000R0HCD50G CXB3590-0000-000R0BCD65E CXB3590-0000-000R0UCB65G CXB3590-0000-000N0BCD50E CXB3590-0000-000R0BCD57E CXB3590-0000- 000N0HCD35G CXB3590-0000-000N0HCB50G CXB3590-0000-000R0HBD30H CXB3590-0000-000N0HBD30H CXB3590-0000-000N0HCD50G CXB3590-0000-000N0HCB27H
