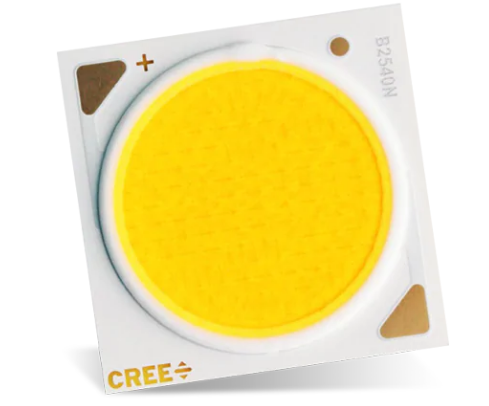

Cree XLamp® CXB2540 LED Arrays

Cree XLamp® CXB2540 LED Arrays expand Cree's family of high‑flux, multi‑die integrated arrays, offering high performance in an easy-to-use platform. With XLamp LED lightingclass reliability, the CXB2540's uniform emitting surface enables both directional and non-directional lighting applications and luminaire and lamp designs. Available in 2‑step, 3‑step, and 5-step color consistency, and featuring a 19‑mm optical source, the CXB2540 brings new levels of flux and efficacy to this form factor.

FEATURES

19mm optical source
Mechanical and optical design consistent with other CXA25 and CXB25 LEDs
Available in 70-, 80-, 90-, and 95-minimum CRI options
Cree EasyWhite® 2-, 3-, and 5-step binning
Premium Color 2- and 3-step binning
Forward voltage option: 36V class

85°C binning and characterization
Extremely uniform color over viewing angle
Top-side solder connections
Thermocouple attach point
NEMA SSL-3 2011 standard flux bins
RoHS and REACH compliant
UL® recognized component (E349212)

SPECIFICATIONS

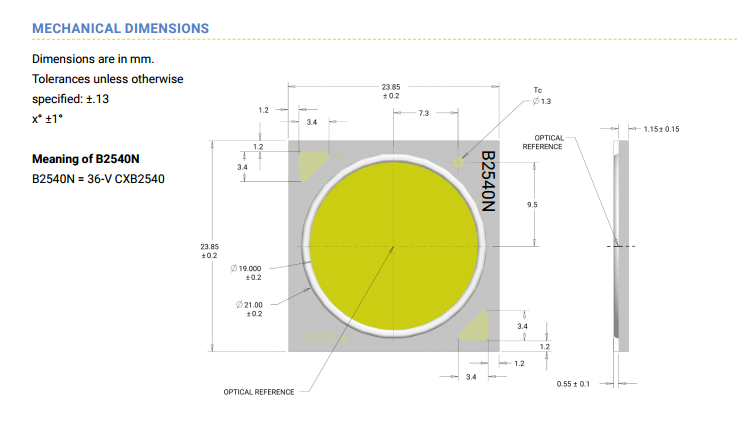

Size: 23.85mm x 23.85mm
Product Options: High-CRI
Maximum Drive Current: 2.1A
Max Power: 79W
Light Output: 5522 - 9380lm
Maximum Efficacy at Binning Conditions: 168lm/W
Light Emitting Surface (LES): 19mm
Typical Forward Voltage: 34.8V @ 1.1A

Maximum Reverse Current: 0.1mA
Viewing Angle: 115°
Binning:
- 85°C
- 2-, 3-, and 5-Step EasyWhite®
Maximum ESD Withstand Voltage: 8000V (HBM per Mil-Std-883D)

APPLICATIONS

Non-Directional
Directional

Cree, Inc.:

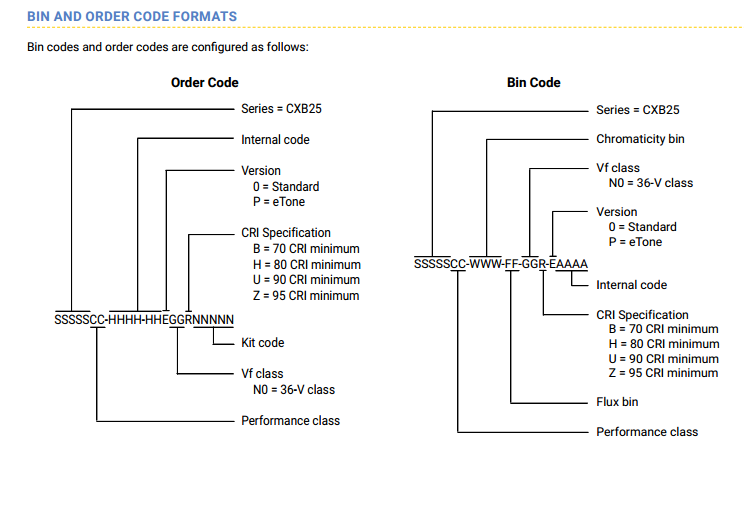

CXB2540-0000-000N0HW235H CXB2540-0000-000N0HV430H CXB2540-0000-000N0BW450E CXB2540-0000- 000N0HW227G CXB2540-0000-000N0HW227H CXB2540-0000-000N0HV427H CXB2540-0000-000N0UV440H CXB2540-0000-000N0BX250E CXB2540-0000-000N0BW440E CXB2540-0000-000N0UV230H CXB2540-0000- 000N0HV427G CXB2540-0000-000N0HW457E CXB2540-0000-000N0UV235H CXB2540-0000-000N0HW435H CXB2540-0000-000N0HW450E CXB2540-0000-000N0HW450G CXB2540-0000-000N0HX265E CXB2540-0000- 000N0UU430H CXB2540-0000-000N0UU430G CXB2540-0000-000N0UV235G CXB2540-0000-000N0BX257E CXB2540-0000-000N0UV240G CXB2540-0000-000N0HW440H CXB2540-0000-000N0UU427H CXB2540-0000- 000N0HW435G CXB2540-0000-000N0UW250G CXB2540-0000-000N0BW457E CXB2540-0000-000N0UV450G CXB2540-0000-000N0UV230G CXB2540-0000-000N0BX265E CXB2540-0000-000N0UV240H CXB2540-0000- 000N0HW465E CXB2540-0000-000N0HX250G CXB2540-0000-000N0UU427G CXB2540-0000-000N0HW240H CXB2540-0000-000N0HW235G CXB2540-0000-000N0UV435H CXB2540-0000-000N0UV440G CXB2540-0000- 000N0BW465E CXB2540-0000-000N0UU227H CXB2540-0000-000N0UU227G CXB2540-0000-000N0HX250E CXB2540-0000-000N0HX257E CXB2540-0000-000N0HW230H CXB2540-0000-000N0UV435G CXB2540-0000- 000N0BX240E CXB2540-0000-000N0HW230G CXB2540-0000-000N0HV430G CXB2540-0000-000N0UU430U CXB2540-0000-000N0UU430Q CXB2540-0000-000N0UV230U CXB2540-0000-000N0UU230U CXB2540-0000- 000N0UV230Q CXB2540-0000-000N0HW440G CXB2540-0000-000N0HW240G CXB2540-0000-000N0HW2L7B CXB2540-0000-000N0ZU227H CXB2540-0000-000N0ZU230H CXB2540-0000-000N0ZU2L7C CXB2540-0000- 000N0ZU435H CXB2540-0000-000N0ZU4L5A CXB2540-0000-000N0UU431Q CXB2540-0000-000N0HX235H CXB2540-0000-000N0BX457E CXB2540-0000-000N0HX240G CXB2540-0000-000N0BX465E CXB2540-0000- 000N0UW450G CXB2540-0000-000N0UW235G CXB2540-0000-000N0UW235H CXB2540-0000-000N0UW240G CXB2540-0000-000N0UW240H CXB2540-0000-000N0HX457E CXB2540-0000-000N0UV227H CXB2540-0000- 000N0HX450G CXB2540-0000-000N0HX240H CXB2540-0000-000N0UV227G CXB2540-0000-000N0HW430G CXB2540-0000-000N0UV430H CXB2540-0000-000N0HW430H CXB2540-0000-000N0HW427H CXB2540-0000- 000N0UV430G CXB2540-0000-000N0HW427G CXB2540-0000-000N0BX440E CXB2540-0000-000N0HX235G CXB2540-0000-000N0HX465E CXB2540-0000-000N0BX450E

Downlights
