JE2835 Mid-Power LEDs



规格书下载:








JE2835 Mid-Power LEDs

Cree JE2835 Mid-Power LEDs are optimized for low-density lighting applications where mid-power and smooth appearance is critical. The JE2835 mid-power LEDs feature 25ºC flux binned, 85ºC chromaticity binned, 6500K to 2700K ANSI CCTs available, and 5V reverse voltage. These mid-power LEDs operate at -40ºC to 105ºC temperature range and 125ºC LED junction temperature. The JE2835 LEDs come in 2.8mm x 3.5mm x 0.7mm dimensions which are industry compatible size. These LEDs are UL recognized component (E495478). Typical applications include troffers, panel, and outdoor area lights.

Features

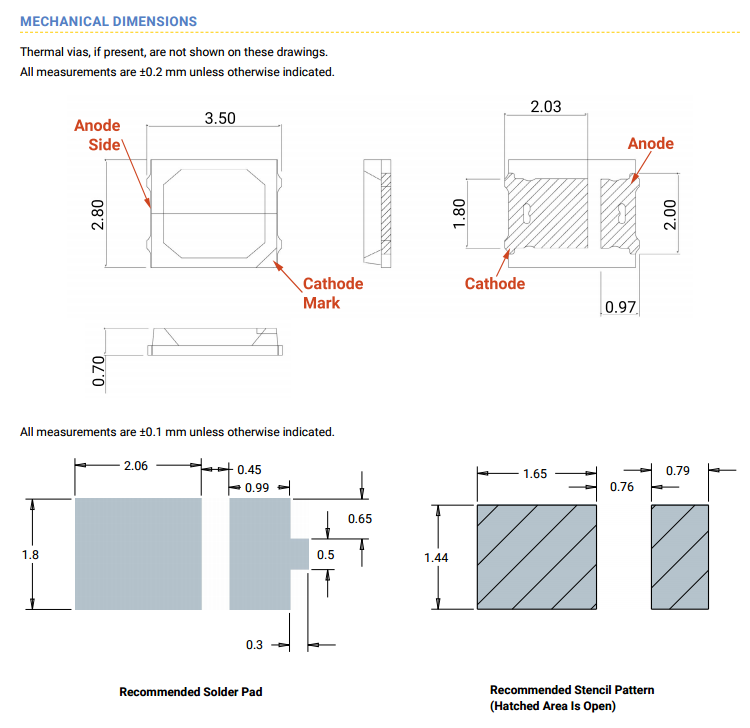

  • 2.8mm x 3.5mm x 0.7mm industry-compatible size
  • 3-V and 6-V configurations
  • Flux binned at 25°C, chromaticity binned at 85°C
  • 6500 K–2700 K ANSI CCTs available
  • 70, 80, and 90 CRI available for all CCTs
  • RoHS and REACH compliant
  • UL® recognized component (E495478)
  • -40ºC to 125ºC operating temperature
  • 125ºC LED junction temperature
  • 5V reverse voltage
  • 20ºC/W thermal resistance




Cree, Inc.: JK2835AWT-00-0000-000B0BM435E JK2835AWT-00-0000-000B0UJ435E JK2835AWT-00-0000-000B0HL435E JE2835AWT-00-0000-000A0BH650E JK2835AWT-00-0000-000B0UK240E JK2835AWT-00-0000-000B0HM245E JE2835AWT-00-0000-000A0BG827E JE2835AWT-00-0000-000A0UF945E JE2835AWT-00-0000-000A0HG957E JE2835AWT-00-0000-000A0UF965E JE2835AWT-00-0000-000A0HG727E JE2835AWT-00-0000-000A0BH645E JK2835AWT-00-0000-000B0BM227E JE2835AWT-00-0000-000A0UF950E JE2835AWT-00-0000-000A0UF827E JK2835AWT-00-0000-000B0UK245E JK2835AWT-00-0000-000B0UK257E JK2835AWT-00-0000-000B0BN240E JE2835AWT-00-0000-000A0BG930E JE2835AWT-00-0000-000A0UF957E JK2835AWT-00-0000-000B0HM265E JK2835AWT-00-0000-000B0BN250E JE2835AWT-00-0000-000A0HG940E JK2835AWT-00-0000-000B0BM430E JE2835AWT-00-0000-000A0HG950E JK2835AWT-00-0000-000B0HM250E JK2835AWT-00-0000-000B0HM257E JE2835AWT-00-0000-000A0HG945E JE2835AWT-00-0000-000A0UF830E JK2835AWT-00-0000-000B0HL430E JE2835AWT-00-0000-000A0BG935E JK2835AWT-00-0000-000B0UJ430E JK2835AWT-00-0000-000B0HL227E JK2835AWT-00-0000-000B0UK250E JE2835AWT-00-0000-000A0BH665E JK2835AWT-00-0000-000B0BN257E JK2835AWT-00-0000-000B0HM240E JE2835AWT-00-0000-000A0HG830E JE2835AWT-00-0000-000A0HG835E JK2835AWT-00-0000-000B0UJ427E JE2835AWT-00-0000-000A0BH640E JE2835AWT-00-0000-000A0BH657E JE2835AWT-00-0000-000A0UF940E JK2835AWT-00-0000-000B0UK265E JE2835AWT-00-0000-000A0UF835E JK2835AWT-00-0000-000B0BN245E JE2835AWT-00-0000-000A0HG965E JK2835AWT-00-0000-000B0BN265E JE2835AWT-00-0000-0B0A0BG627E JE2835AWT-00-0000-0B0A0BG730E JE2835AWT-00-0000-0B0A0BG735E JE2835AWT-00-0000-0B0A0BG840E JE2835AWT-00-0000-0B0A0BG845E JE2835AWT-00-0000-0B0A0BG850E JK2835AWT-00-0000-000C0UJ235E JK2835AWT-00-0000-000C0UJ240E JK2835AWT-00-0000-000C0UJ245E JK2835AWT-00-0000-000C0UJ250E JK2835AWT-00-0000-000C0UJ257E JK2835AWT-00-0000-000C0UJ265E JK2835AWT-00-0000-000C0HL245E JK2835AWT-00-0000-000C0HL250E JK2835AWT-00-0000-000C0HL257E JK2835AWT-00-0000-000C0HL265E JK2835AWT-00-0000-000C0UH227E JK2835AWT-00-0000-000C0UH430E JK2835AWT-00-0000-000C0BL457E JK2835AWT-00-0000-000C0BL465E JK2835AWT-00-0000-000C0HK227E JK2835AWT-00-0000-000C0HK430E JK2835AWT-00-0000-000C0HL235E JK2835AWT-00-0000-000C0HL240E JK2835AWT-00-0000-000C0BK427E JK2835AWT-00-0000-000C0BL230E JK2835AWT-00-0000-000C0BL235E JK2835AWT-00-0000-000C0BL440E JK2835AWT-00-0000-000C0BL445E JK2835AWT-00-0000-000C0BL450E JE2835AWT-00-0000-0B0A0UF735E JE2835AWT-00-0000-0B0A0UF840E JE2835AWT-00-0000-0B0A0UF845E JE2835AWT-00-0000-0B0A0UF850E JE2835AWT-00-0000-0B0A0UF857E JE2835AWT-00-0000-0B0A0UF865E JE2835AWT-00-0000-0B0A0HG745E JE2835AWT-00-0000-0B0A0HG750E JE2835AWT-00-0000-0B0A0HG757E JE2835AWT-00-0000-0B0A0HG765E JE2835AWT-00-0000-0B0A0UF627E JE2835AWT-00-0000-0B0A0UF730E JE2835AWT-00-0000-0B0A0BG857E JE2835AWT-00-0000-0B0A0BG865E JE2835AWT-00-0000-0B0A0HF927E JE2835AWT-00-0000-0B0A0HG630E JE2835AWT-00-0000-0B0A0HG635E JE2835AWT-00-0000-0B0A0HG740E
